Key Features

• 10A charge rate capacity
• 100–240V worldwide voltage support
• Delivers up to 100W of power
• Ideal for FPV & Car batteries

The iMars S100 is an upgrade from the iMars Pro III and a proud new addition to the G-Tech Eco family. It is specifically designed for G-Tech smart batteries and remains fully compatible with non-smart batteries.

What’s New?

1. Mechanical Keys: Replaces the touchpad with physical buttons, inspired by our Dual 300W charger. Includes G-Tech port integration for seamless compatibility.
2. Unified UI Language: Consistent with the Dual 300W charger interface, ensuring easier navigation across all future releases.

These upgrades enhance ergonomics and usability, making the iMars S100 ideal for a wide range of applications—from 3-inch FPV drones and Airsoft pistols to 1:10/1:8 racing cars and 700-series helicopters.

Specifications

• Input Voltage: AC 100–240V
• Output Voltage: 27V (max)
• Max Input Current: 50–60Hz, 1.5A
• Discharging Power: 5W (max)
• Charging Power: 100W (max)
• Charge Current: 10A (max)
• Discharge Current: 0.4A (max)
• Cell Balancing: 2S–6S (LiPo, Li-ion, LiHV, LiFe); 4S–18S (NiMH)
• Functions: Charge / Discharge / Storage / Balance
• Channel: Single
• Input Connector: AC
• Output Connector: XT60
• Dimensions: 139.8 × 83 × 40 mm
• Net Weight: Approx. 310g

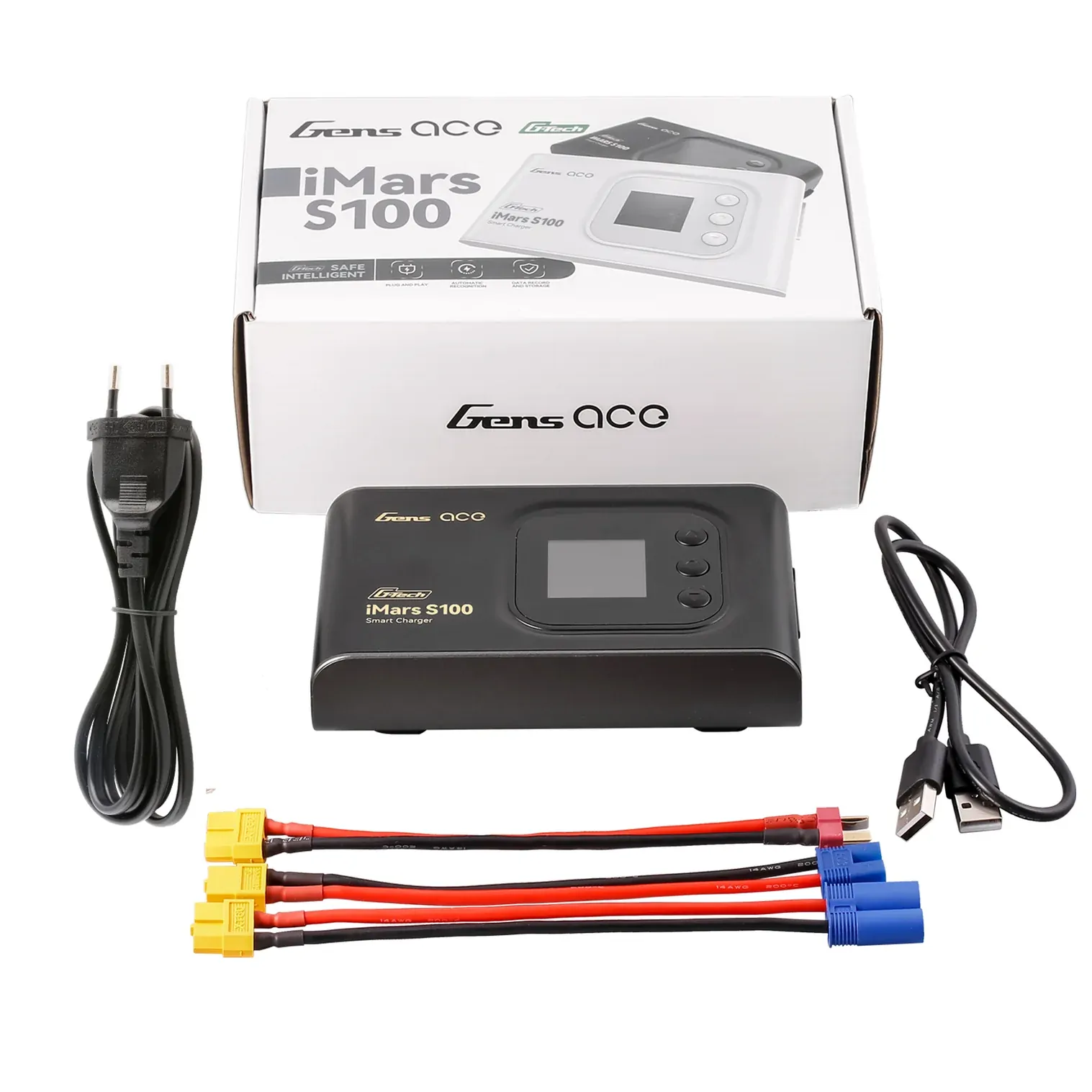

• Included Accessories: AC Input Cable, XT60-T, XT60-EC5, XT60-EC3 adapters, USB cable
