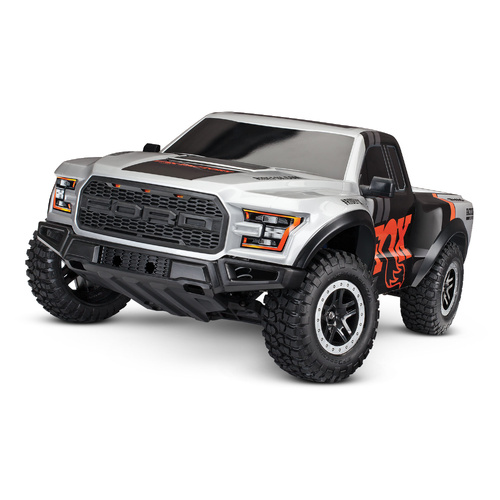

TRAXXAS Ford Raptor 2WD BL-2s Radio Control Brushless FOX (Battery & Charger NOT inc) 58394

BATTERY AND CHARGER ARE NOT INCLUDED

Ford F-150 Raptor Styling
Award-Winning Slash Performance

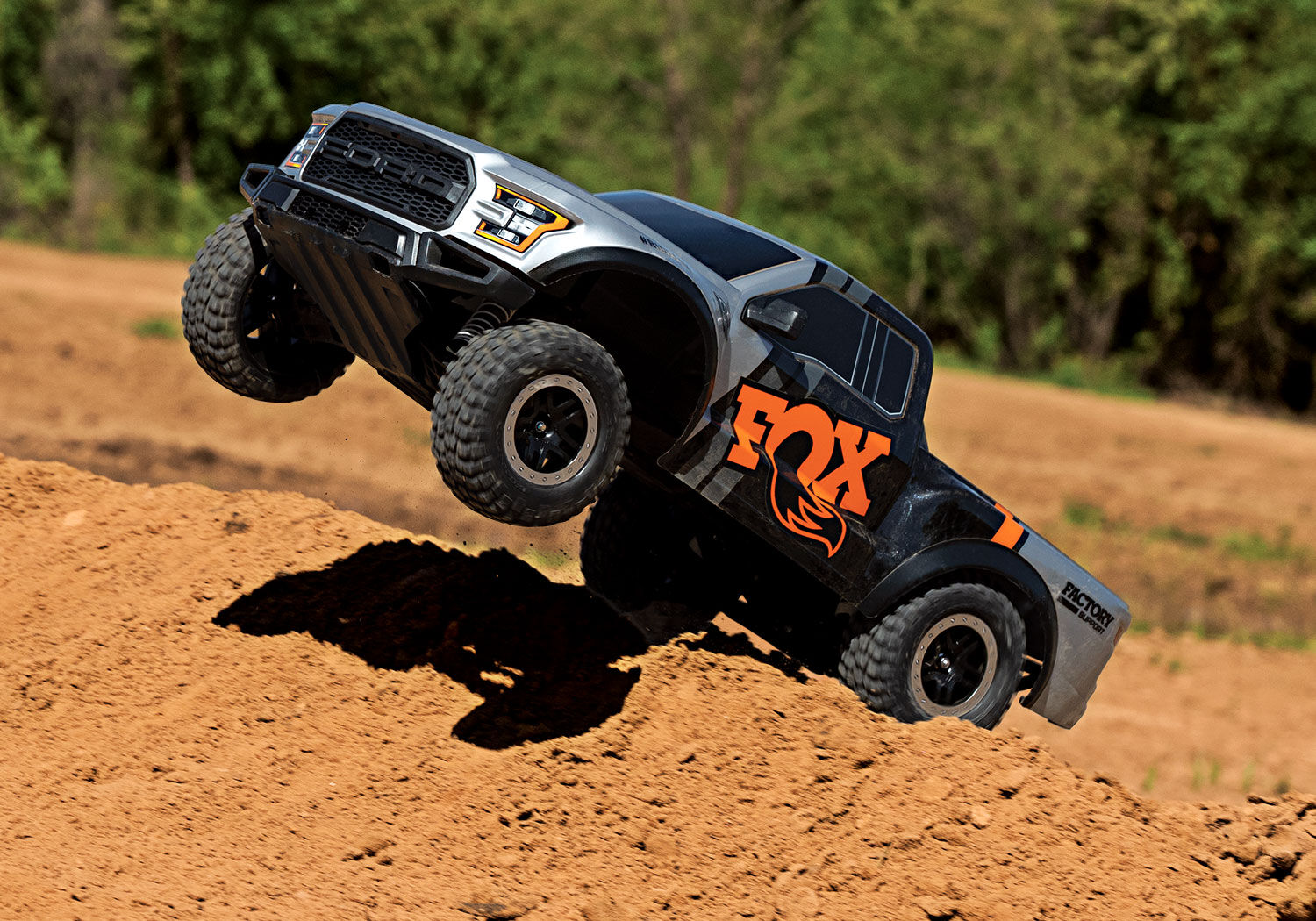

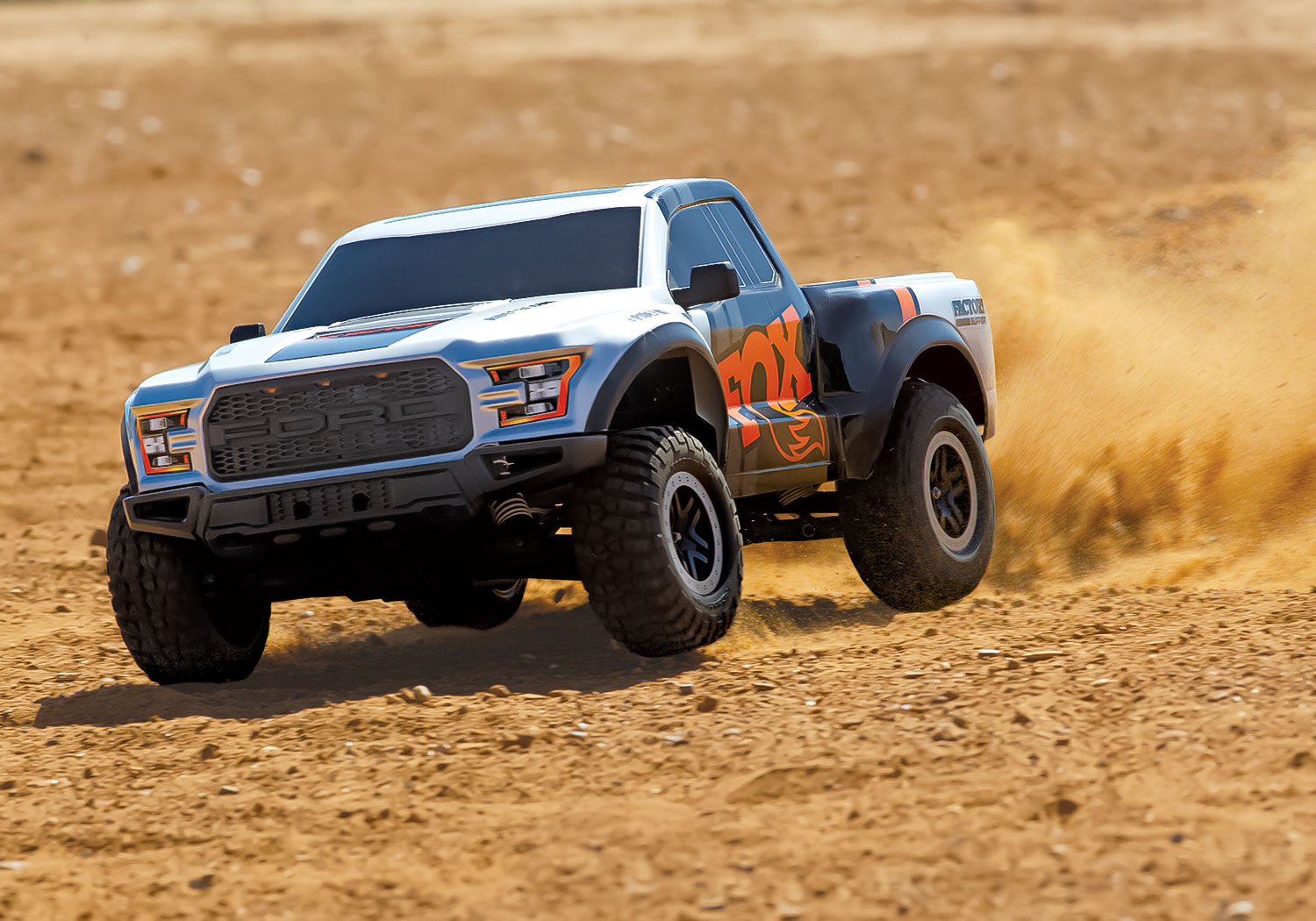

Based on the award-winning Slash^®, the Traxxas Ford^® F-150^® Raptor^® combines show-stopping looks with legendary Slash toughness. Now Raptor comes standard with the BL-2s^™ brushless power system for a more responsive throttle, powerful acceleration, and all-day fun. Raptor comes fortified with Traxxas’ Extreme Heavy Duty components to take even the most brutal punishment in stride.

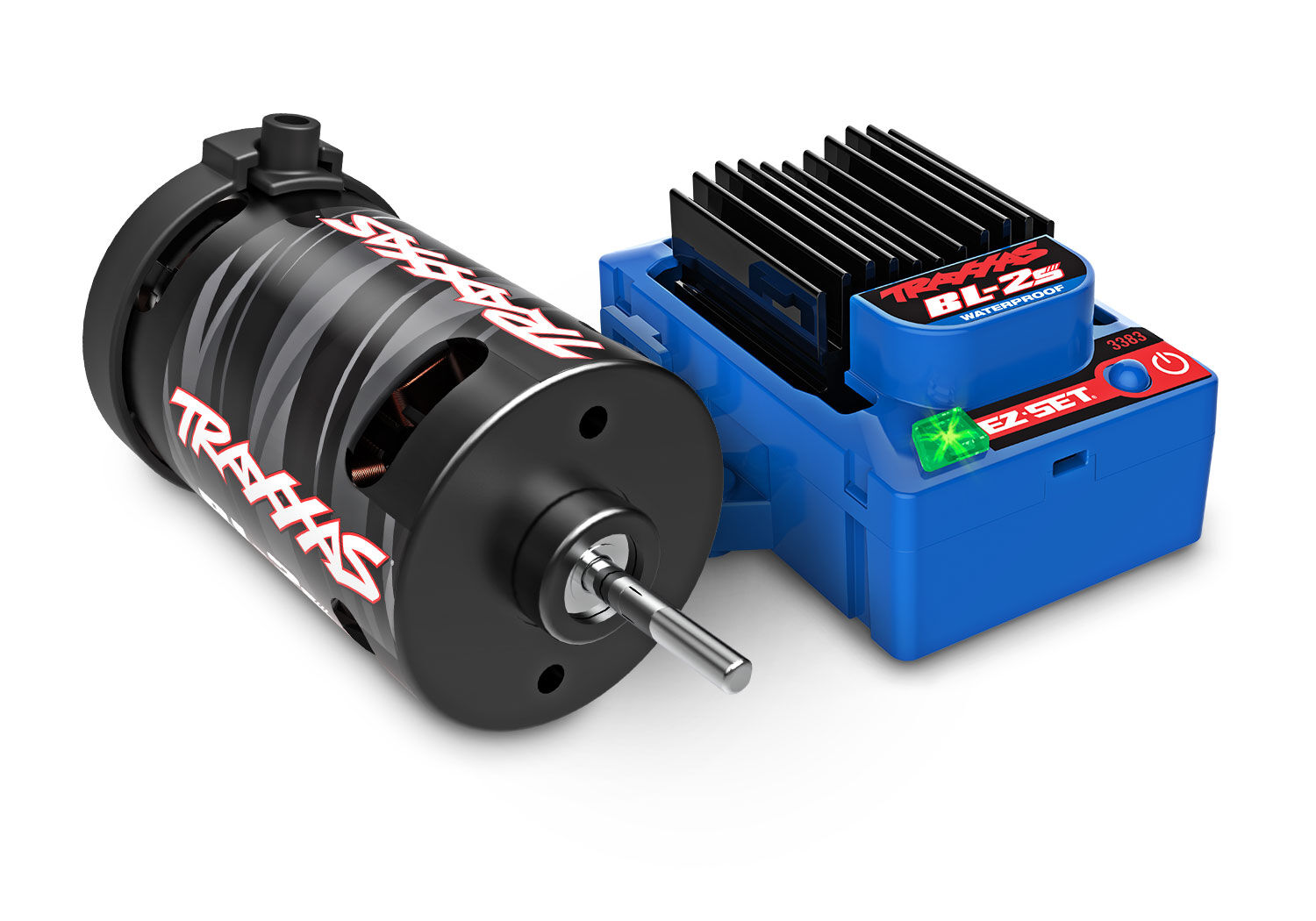

BL-2s Brushless Power System

Raptor’s waterproof BL-2s brushless power system ramps up the fun with more torque, faster acceleration, and less maintenance than comparable brushed power systems. The BL-2s is a model of efficiency and refinement, offering more power than before with the safety and convenience that only Traxxas can deliver.

Extreme Heavy Duty Components

Extreme Heavy Duty components come factory-installed on Raptor for game-changing durability. Key drivetrain and suspension components are beefed-up with extra material for unbeatable strength. From HD suspension arms to upgraded driveshafts, Raptor sets a new standard for durability for your off-road adventures.

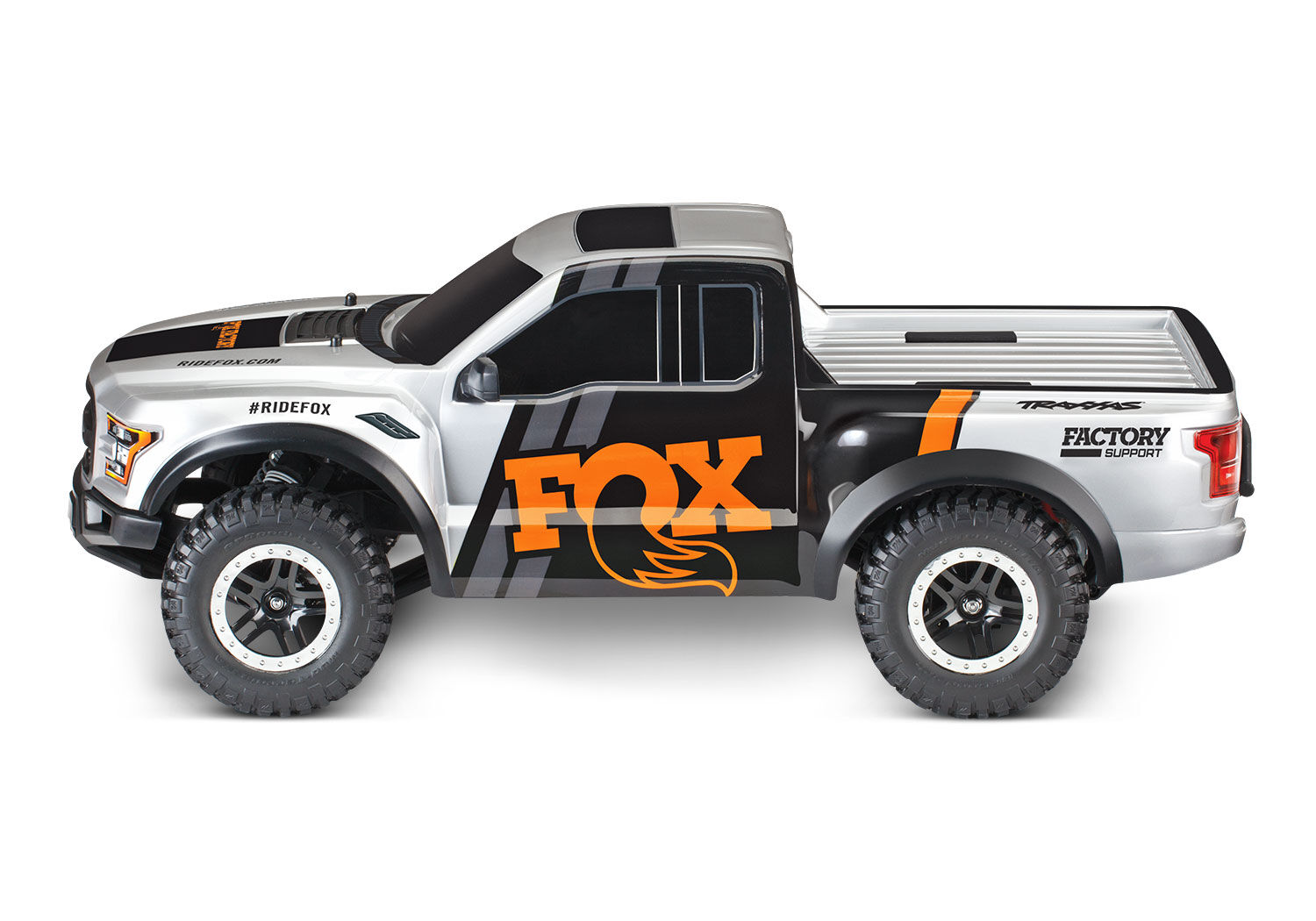

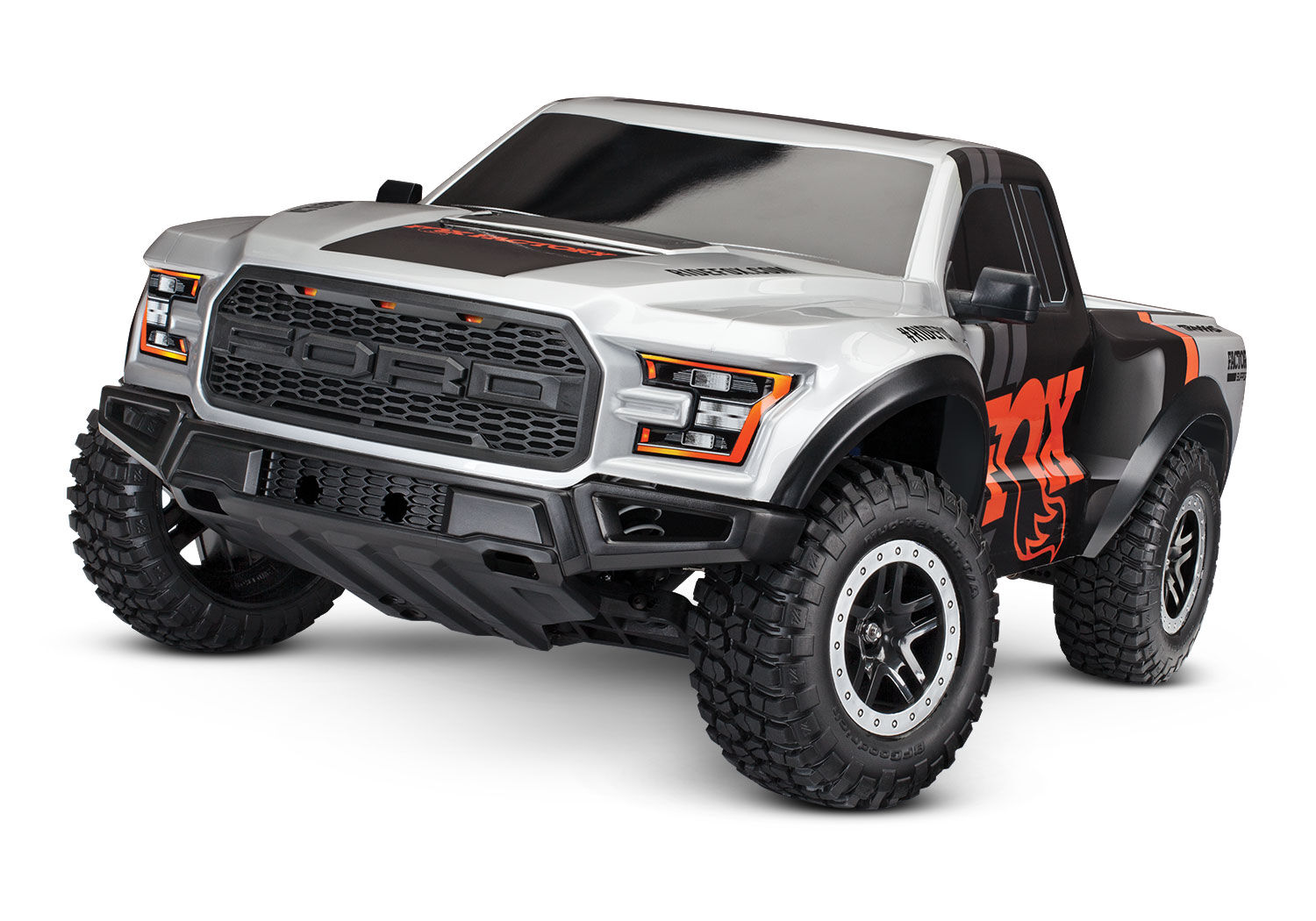

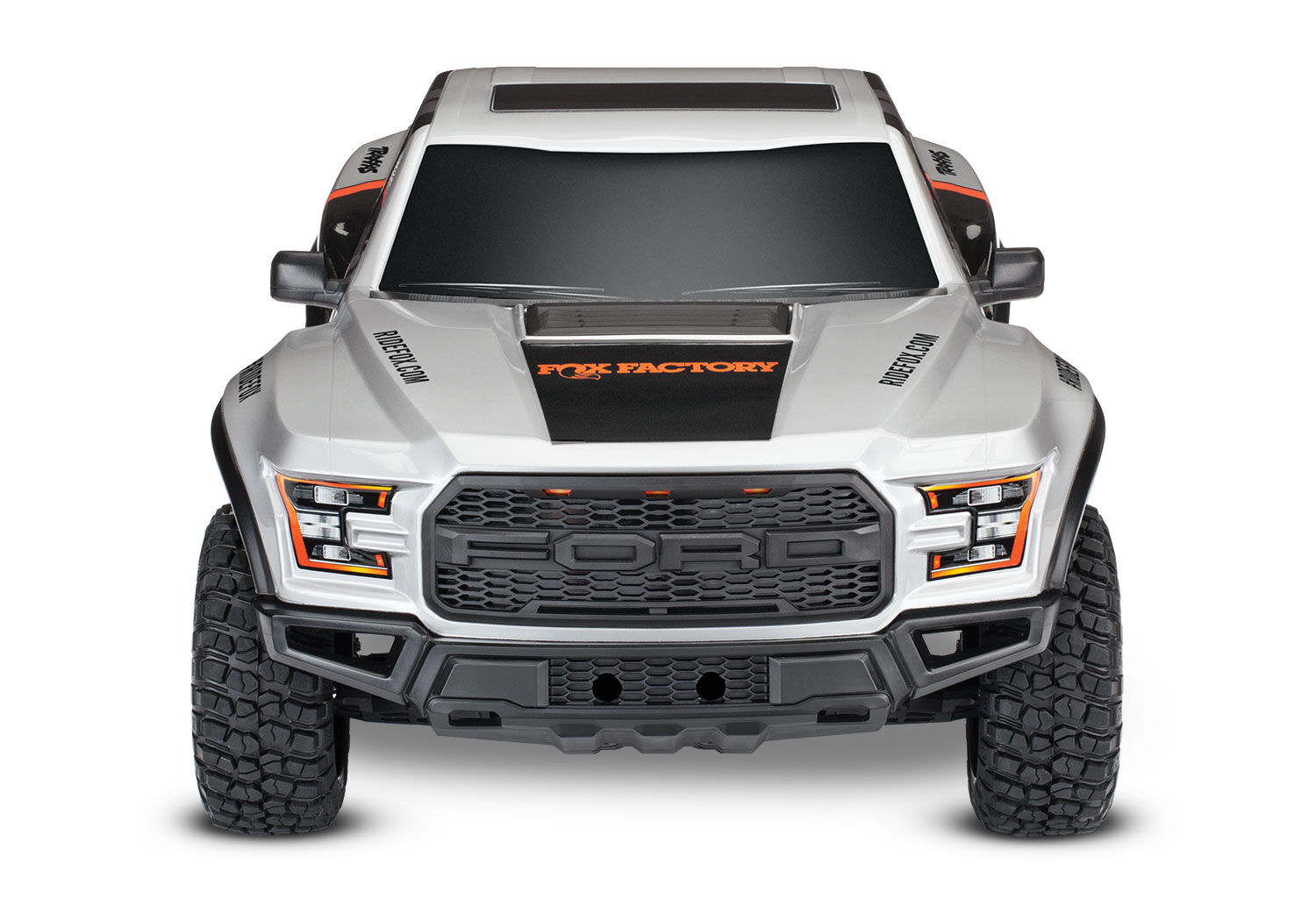

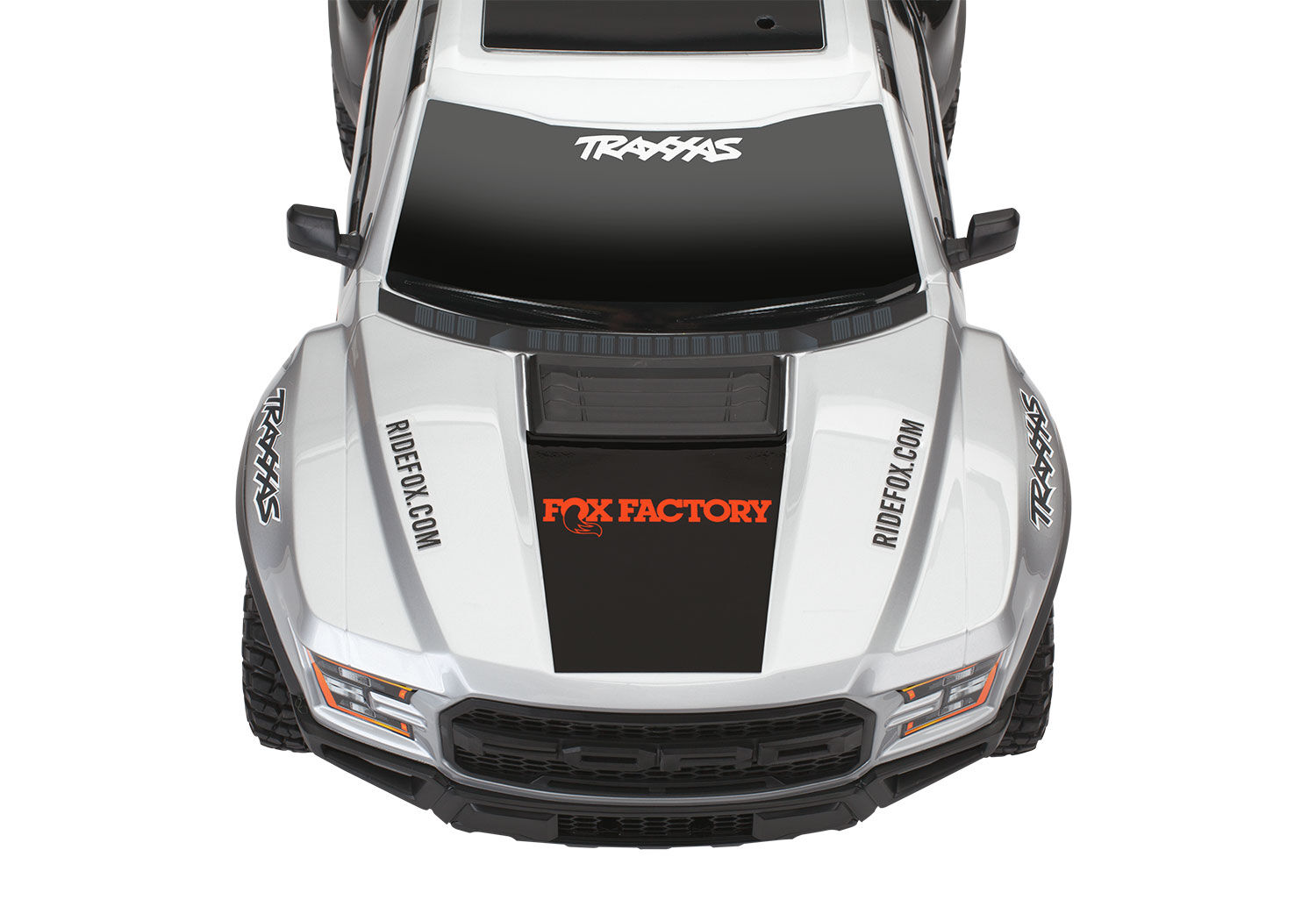

Clipless Ford F-150 Raptor Body

Raptor’s sleek clipless body comes fully detailed with an injection molded grille, front bumper, and body accessories to capture the full depth and detail of Ford’s original design. Raptor’s hidden latching system maximizes convenience and scale realism by removing traditional body clips which would interrupt the body’s clean lines.

Length:	22.36 inches (568 mm)
Front Track:	11.65 inches (296 mm)
Rear Track:	11.65 inches (296 mm)
Center Ground Clearance:	3.5 inches (89 mm)
Weight (no battery):	4.76 pounds (2.16 kg)
Height (overall):	8.43 inches (214 mm)
Wheelbase:	13.2 inches (335 mm)
Shock Length (front):	3.45 inches (88 mm) - Long
Shock Length (rear):	3.98 inches (101 mm) - XX-Long
Tires:	Replica BFGoodrich^® Mud Terrain T/A^® Tires
Tire Diameter:	4.3″ x 1.7″ inches (109 mm x 43 mm)
Wheels (front/rear):	Split-Spoke SCT wheels
Wheel Diameter:	2.2 inches (56 mm) (outer) 3.0 inches (76 mm) (inner)

Speed Control:	BL-2s^™ electronic speed control
Motor (electric):	BL-2s^™ 3300 Kv sensorless brushless
Overall Drive Ratio:	12.58:1
Differential Type:	Planetary
Gear Pitch:	48
Chassis Structure/Material:	Composite tub
Drive System:	2WD
Steering:	Dual-bellcrank with integrated servo saver
Radio System:	TQ^™ 2.4 GHz (2-channel)
Servo:	Waterproof digital 2075 servo (125 oz-in torque)
Skill Level:	1
Battery Compartment (L/W/H):	165 mm (6.49″) x 50 mm (1.95″) x 23/25 mm (1.02″/0.90″)
Required Batteries:	4 “AA” (transmitter), Vehicle (see battery finder)

Product Features

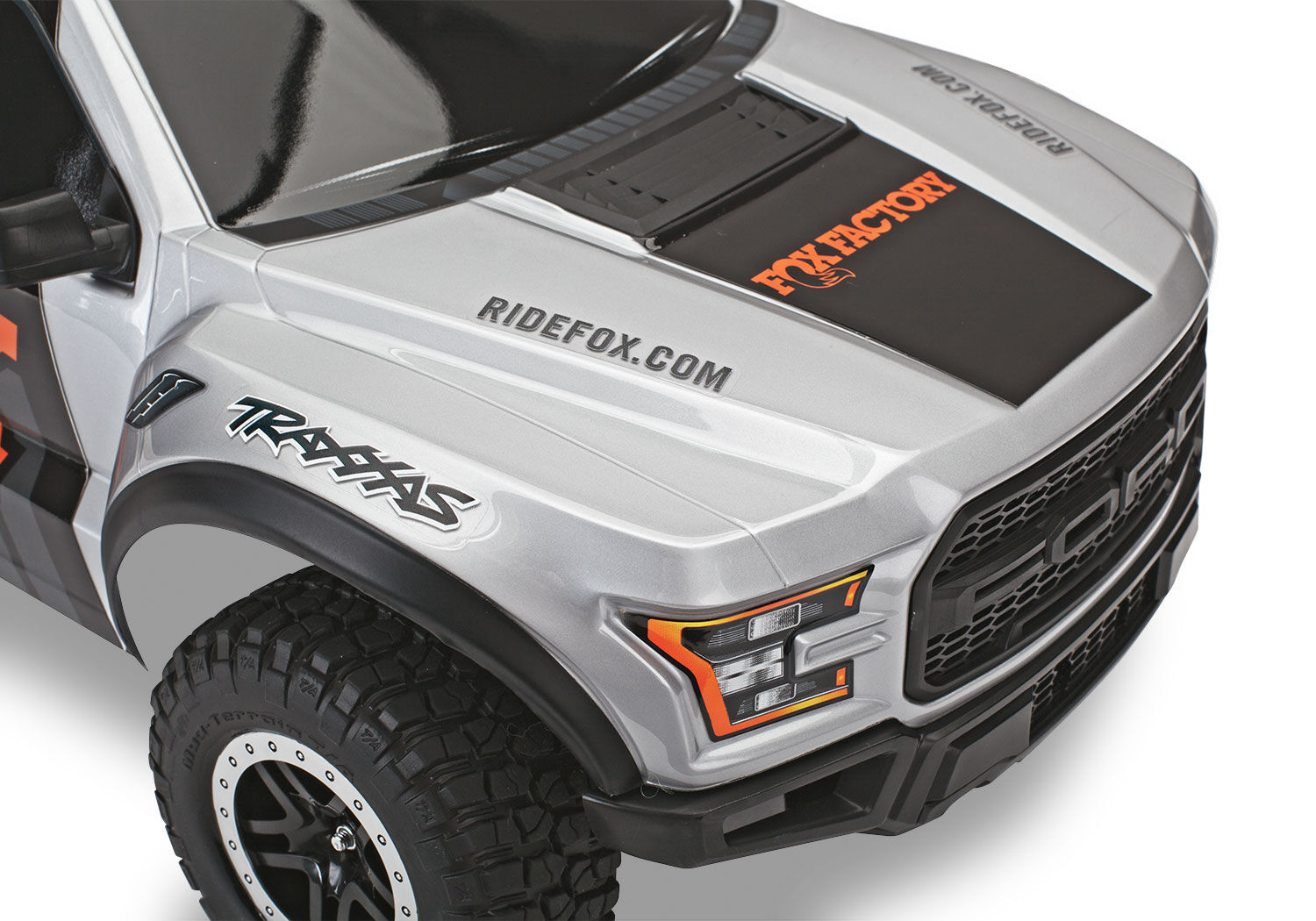

Licensed Ford^® F-150^® Raptor^® Clipless Body
- Injection molded grille, side mirrors, and hood vent
- Chassis nerf bars absorb impact and support the body
- Tough front and rear replica bumpers
- Holds tight for intense action
- Body reinforcements to prevent pull-through damage
- Holds tight for intense action
- Quick and easy removal
Extreme Heavy Duty Upgrade Components

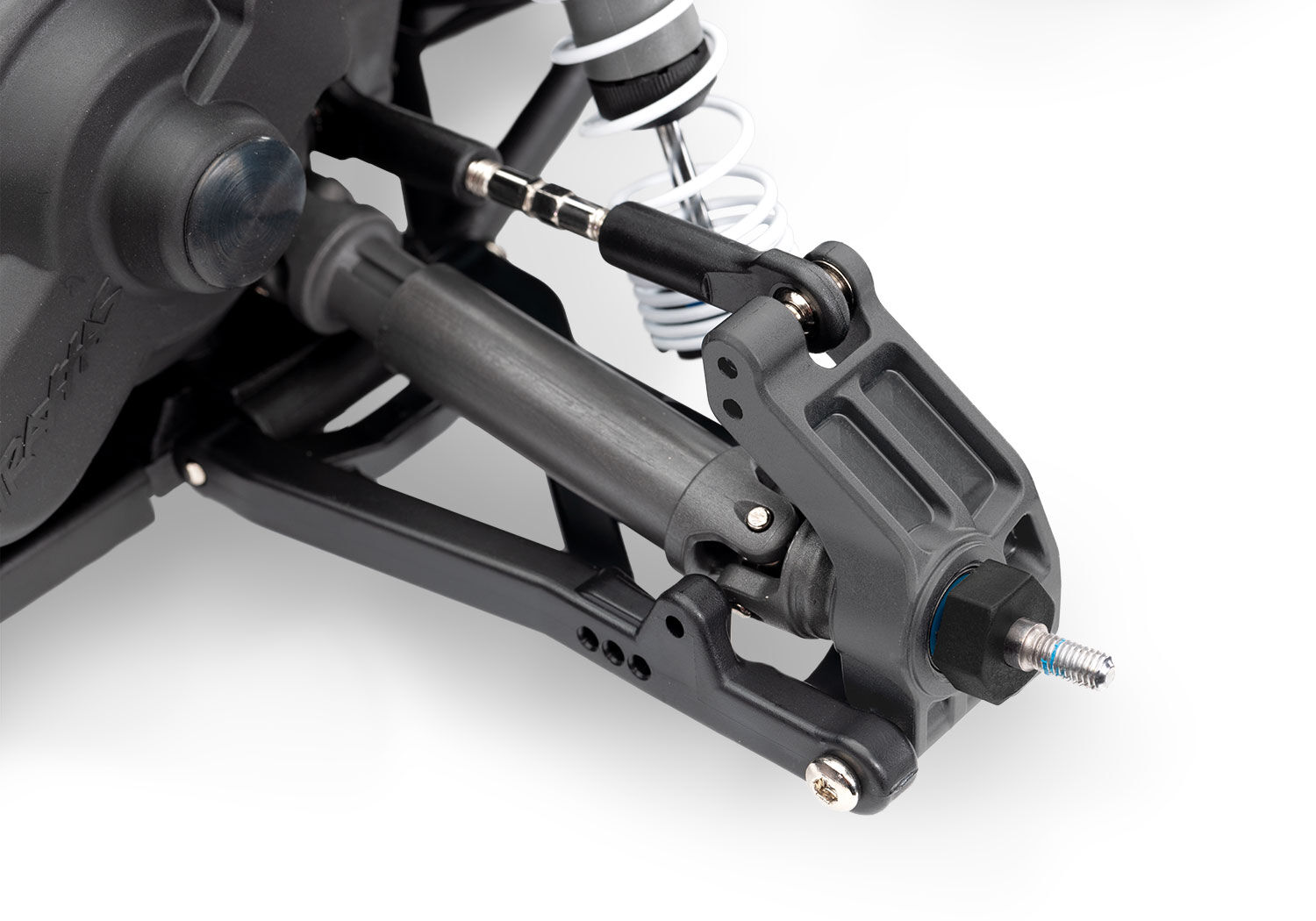

- Strengthened C-hubs, axle carriers, and steering blocks
- Extreme heavy duty driveshafts

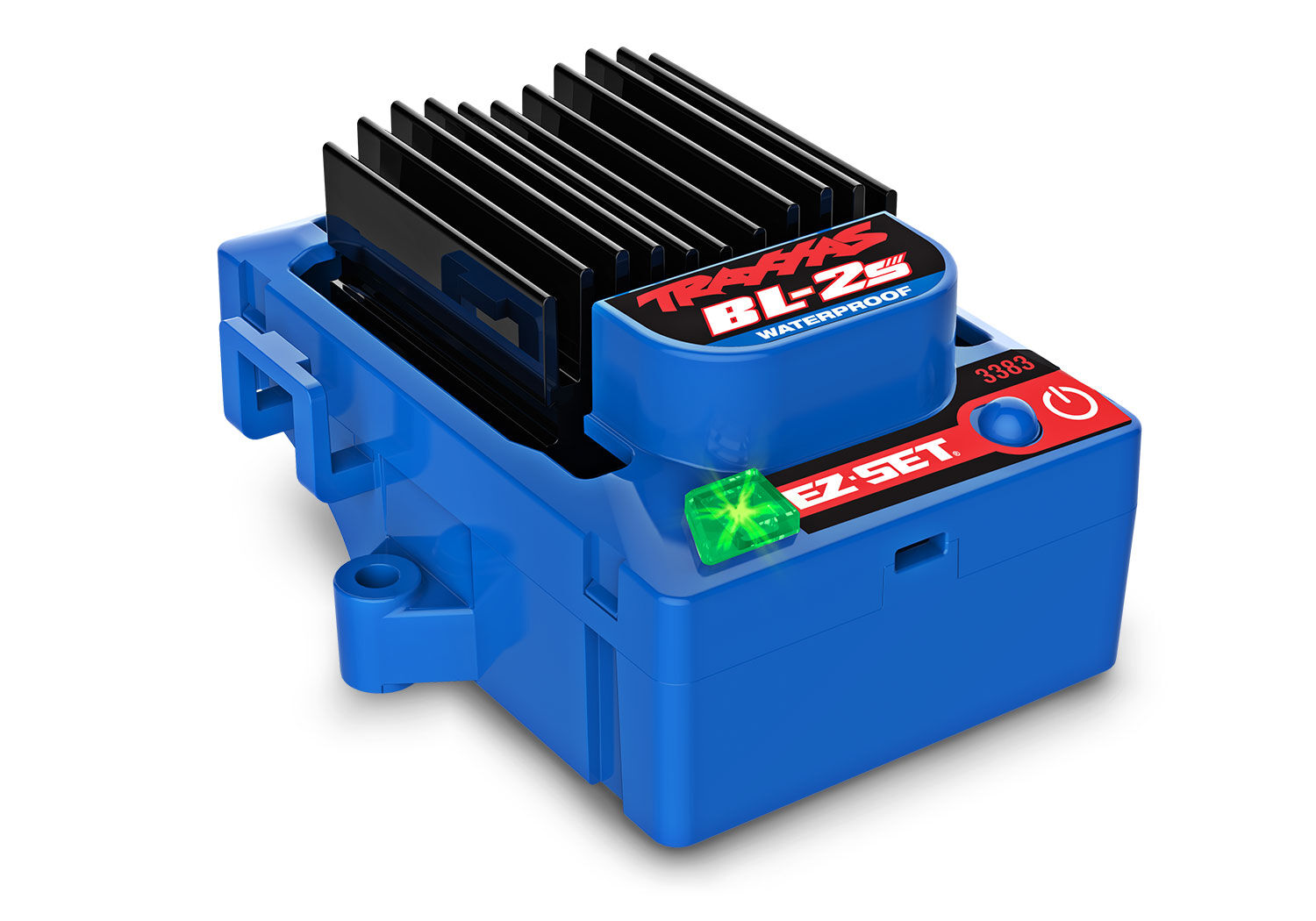

BL-2s^™ Waterproof Electronic Speed Control
- Heat sink accepts accessory cooling fan (3340)
- Three Programmable Drive Profiles
  - Sport Mode - Forward / Brake / Reverse
  - Race Mode - Forward / Brake
  - Training Mode^™ - 50% Forward / Brake / 50% Reverse (patented)
- Traxxas EZ-Set^® one-button setup
- Built-in two-stage low-voltage detection for LiPo batteries
- NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)
- LiPo battery packs: 2 cells (7.4 volts)

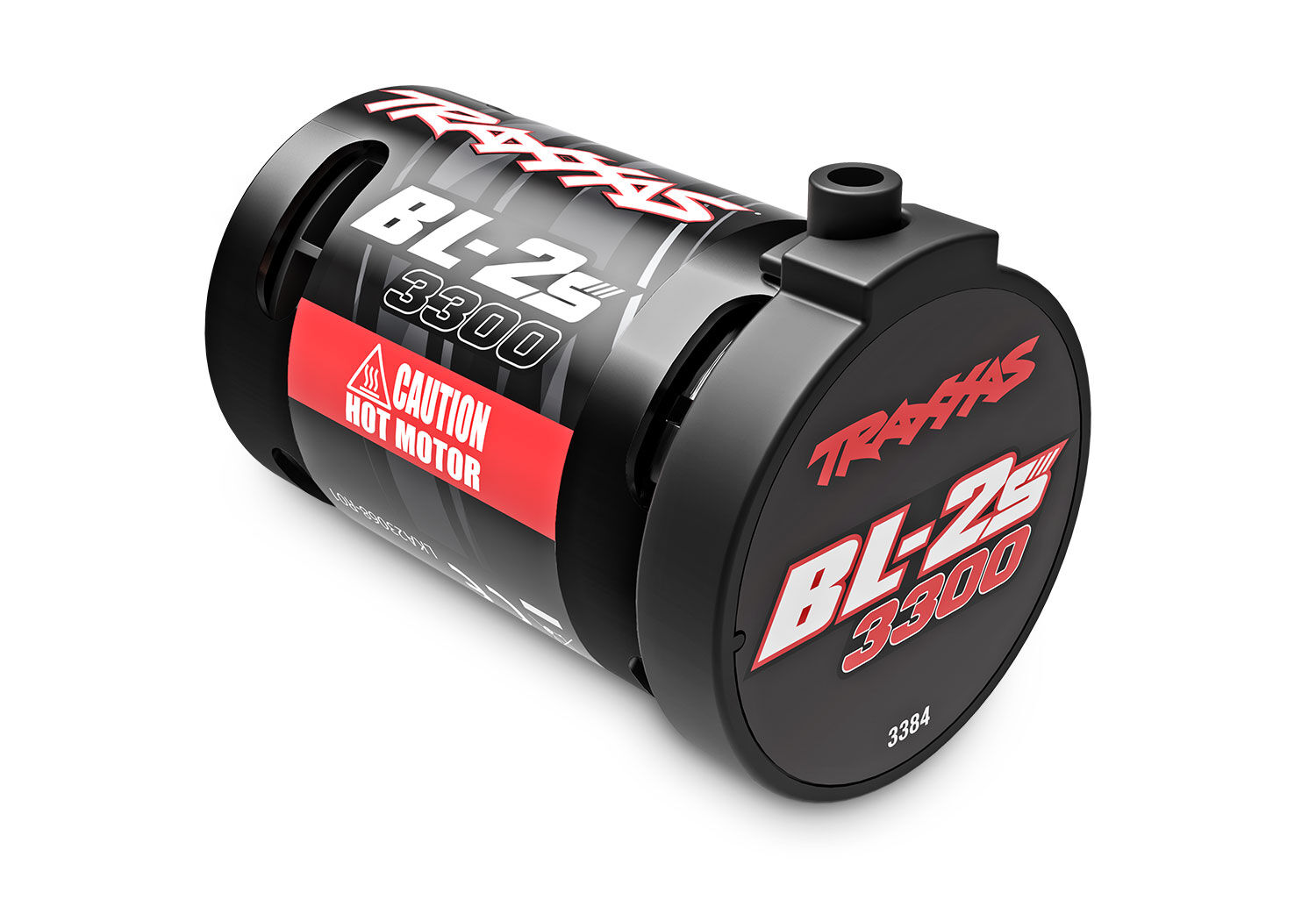

3300 Kv Brushless Motor
- Integrated cooling fan
- Low-maintenance design
- Efficient ball bearings
- 3300 Kv
TQ^™ 2.4 GHz Transmitter
- Full-size 2-channel transmitter
- All-day comfort with precise long-range control

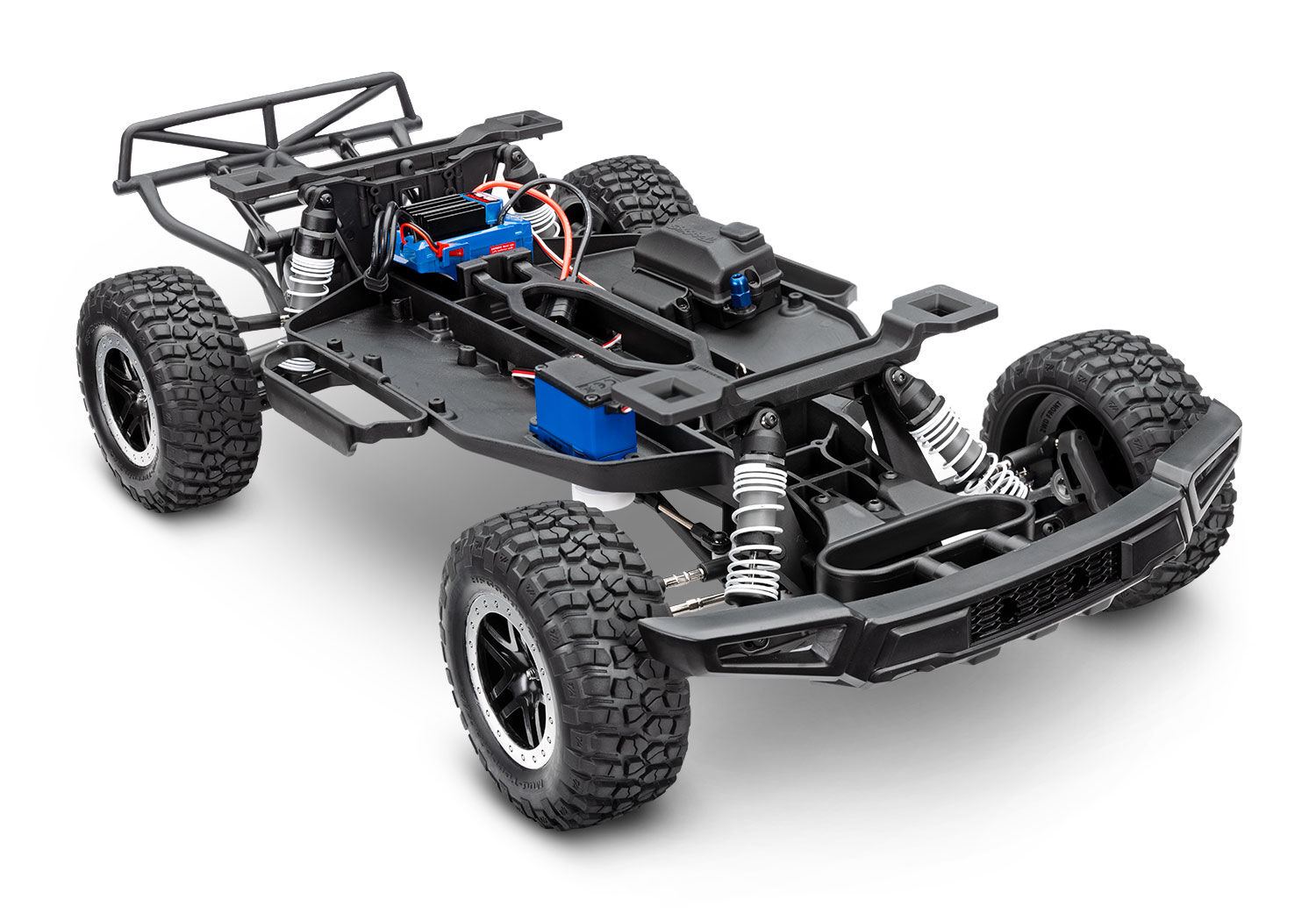

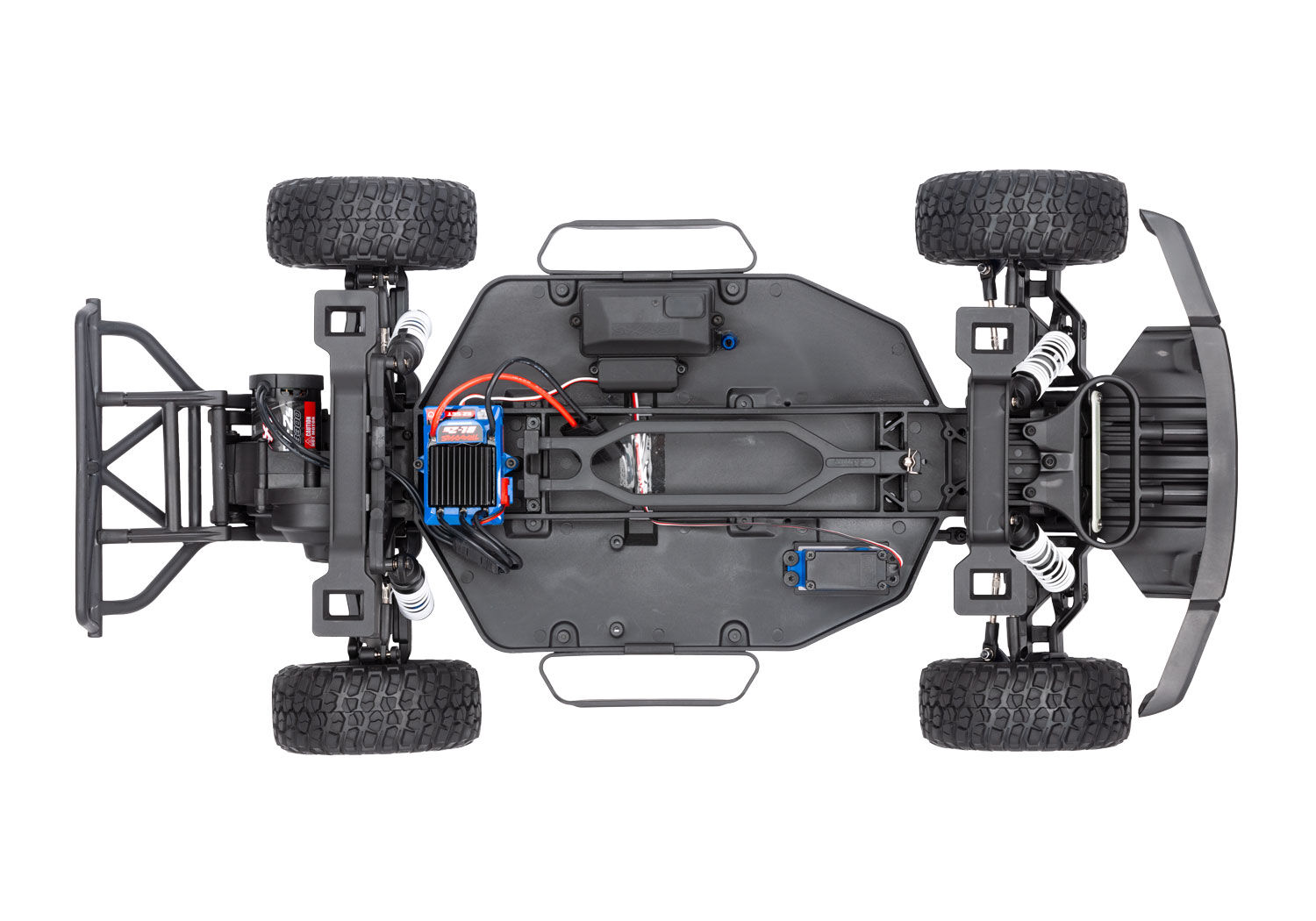

Tough Fiber-Composite Monocoque Chassis
- Long 13.2″ wheelbase for increased stability
- Over 3.5″ of ground clearance
Easy Access Battery Compartment
- Adjustable battery hold down
- Accepts 6- and 7-cell flat packs and 7-cell hump packs
- Accepts many 2s LiPo battery configurations

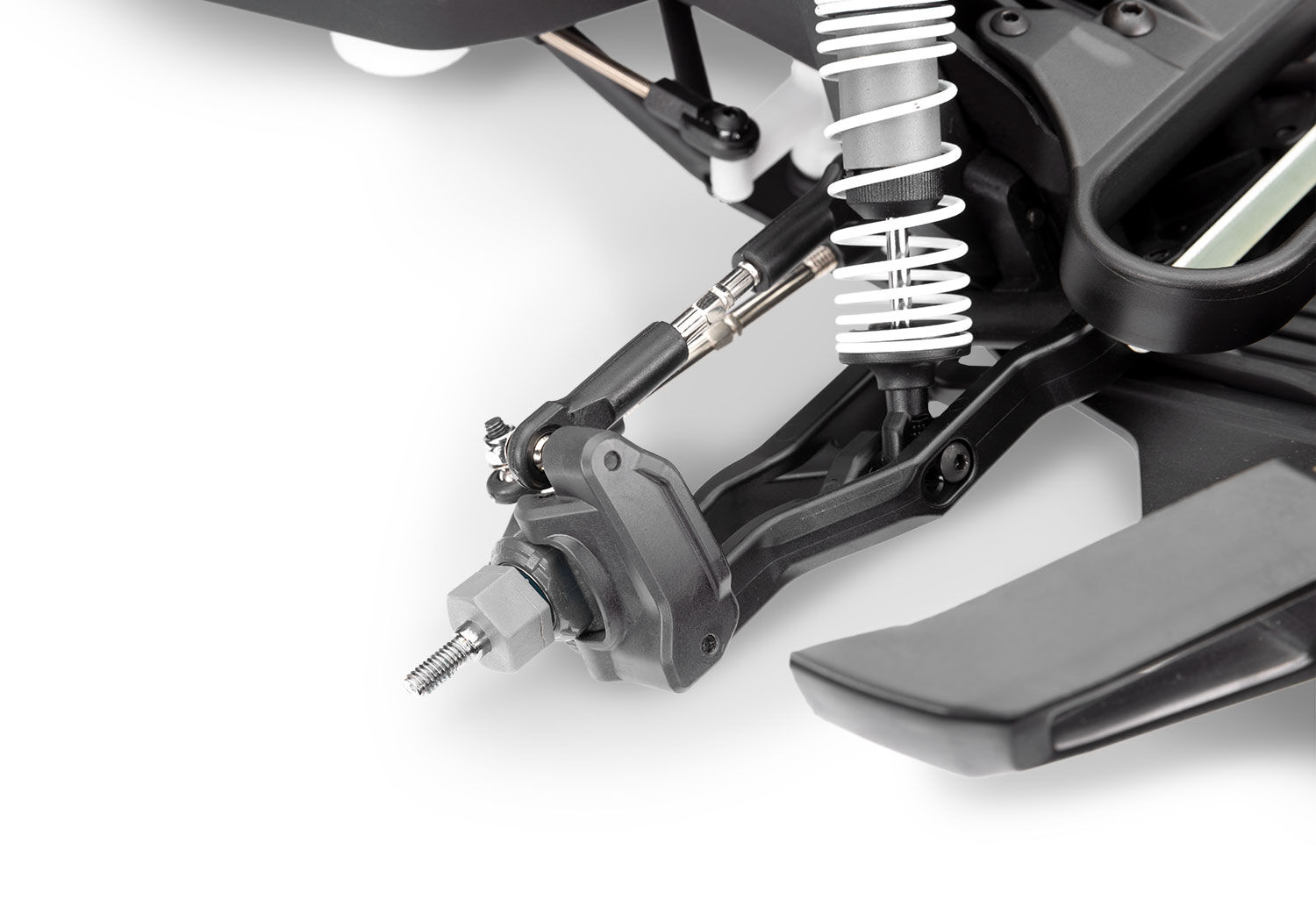

Suspension
- Heavy-duty suspension arms
- Adjustable steel turnbuckles
- Oil-filled Ultra Shocks^™
- White powder-coated springs

Steering
- Chassis-mounted 2075 servo
- High-performance bellcrank system minimizes bump steer
Transmission
- Velineon-ready Magnum 272^™ metal-gear transmission

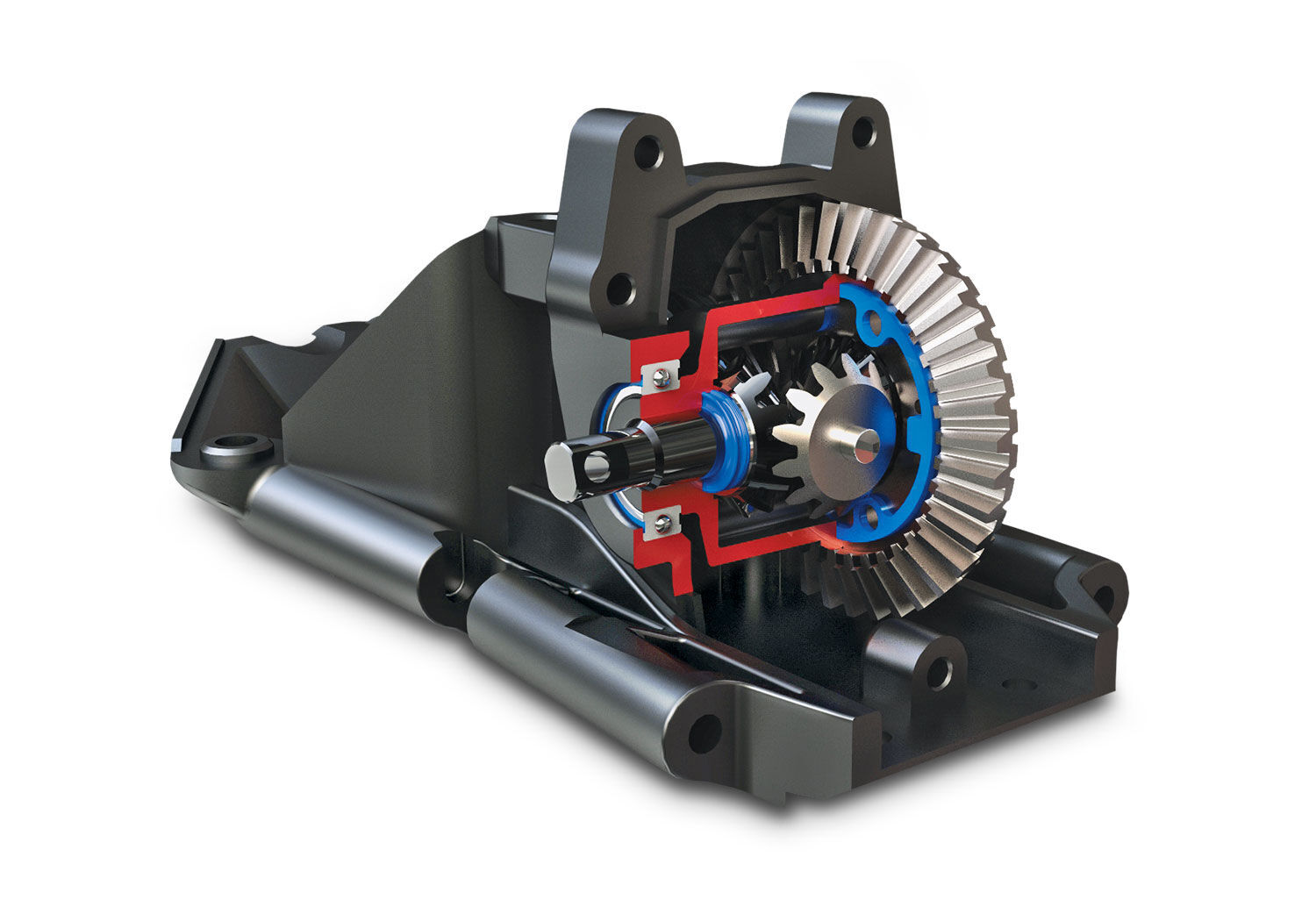

- Planetary gear differential with steel ring gear
- Sealed gearbox protects the transmission
- External gear cover with easy clutch access
Drivetrain
- Extreme heavy-duty driveshafts
- Torque Control^™ slipper clutch
Wheels and Tyres
- Split-Spoke SCT wheels
  - 2.2″ outer diameter, 3″ inner diameter
- Replica BFGoodrich^® Mud Terrain T/A^® Tyres
Sealed Ball Bearings
Hex hardware with Rust-Resistant Black Oxide Coating

What’s In The Box

Ford F-150 Raptor BL-2s ESC and 3300 Kv motor
Quick Start Guide
TQ^™ 2.4 GHz radio system
High quality maintenance tools

What You’ll Need

Batteries
Raptor requires a single NiMH or LiPo battery. See full list of batteries.
Charger
Traxxas EZ-Peak charger (2970) is recommended for easy and fast charging performance.
AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
