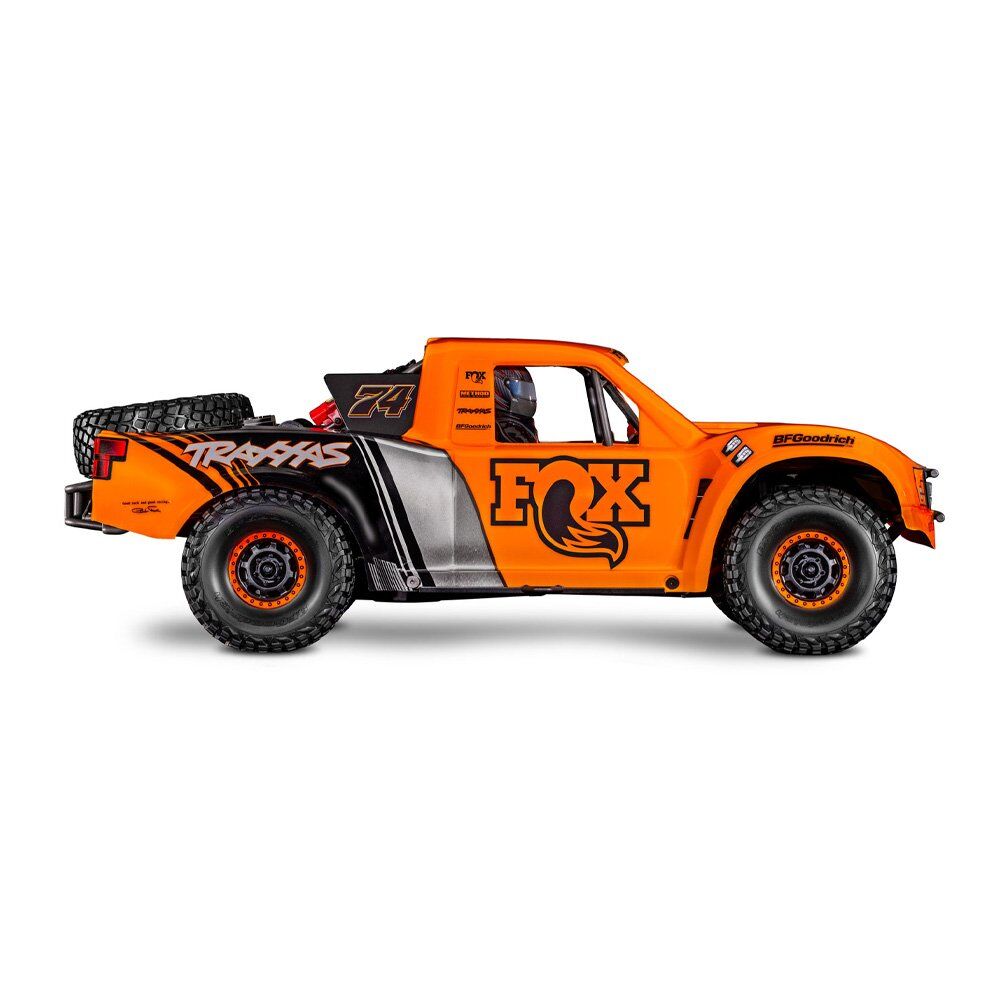

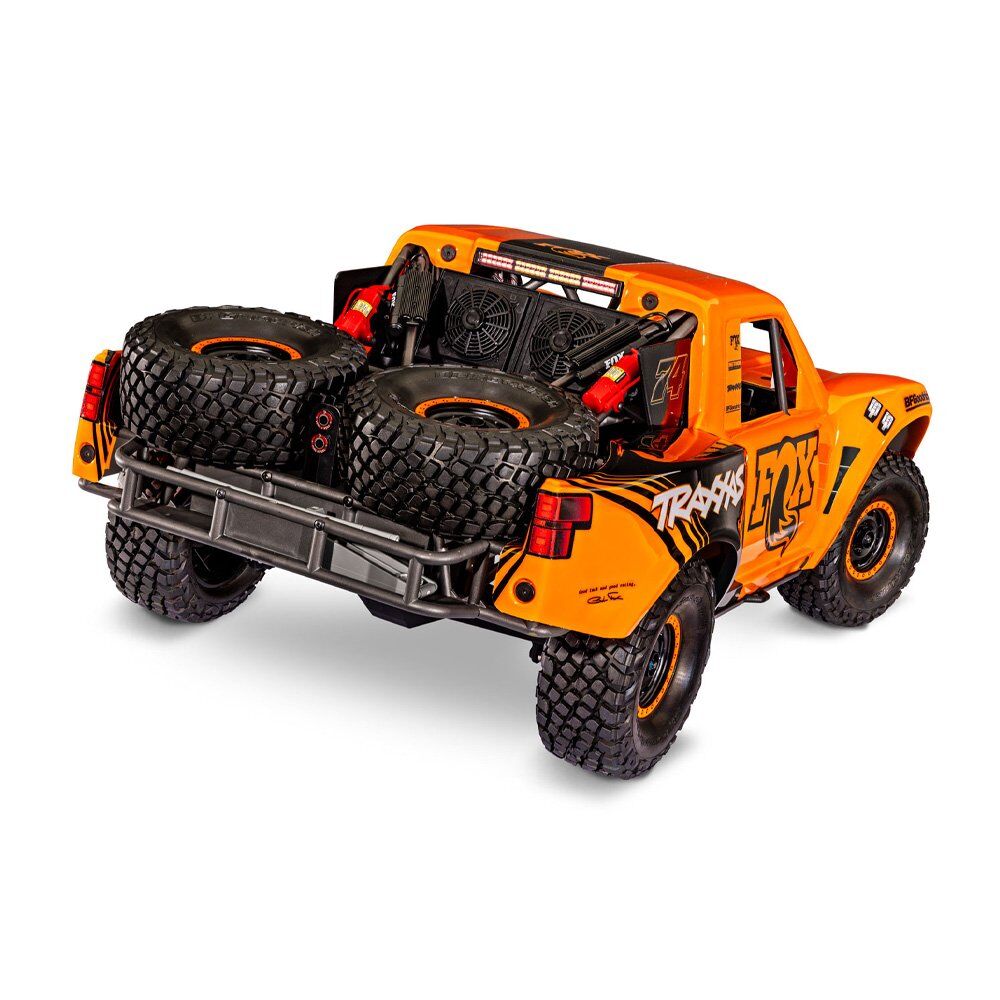

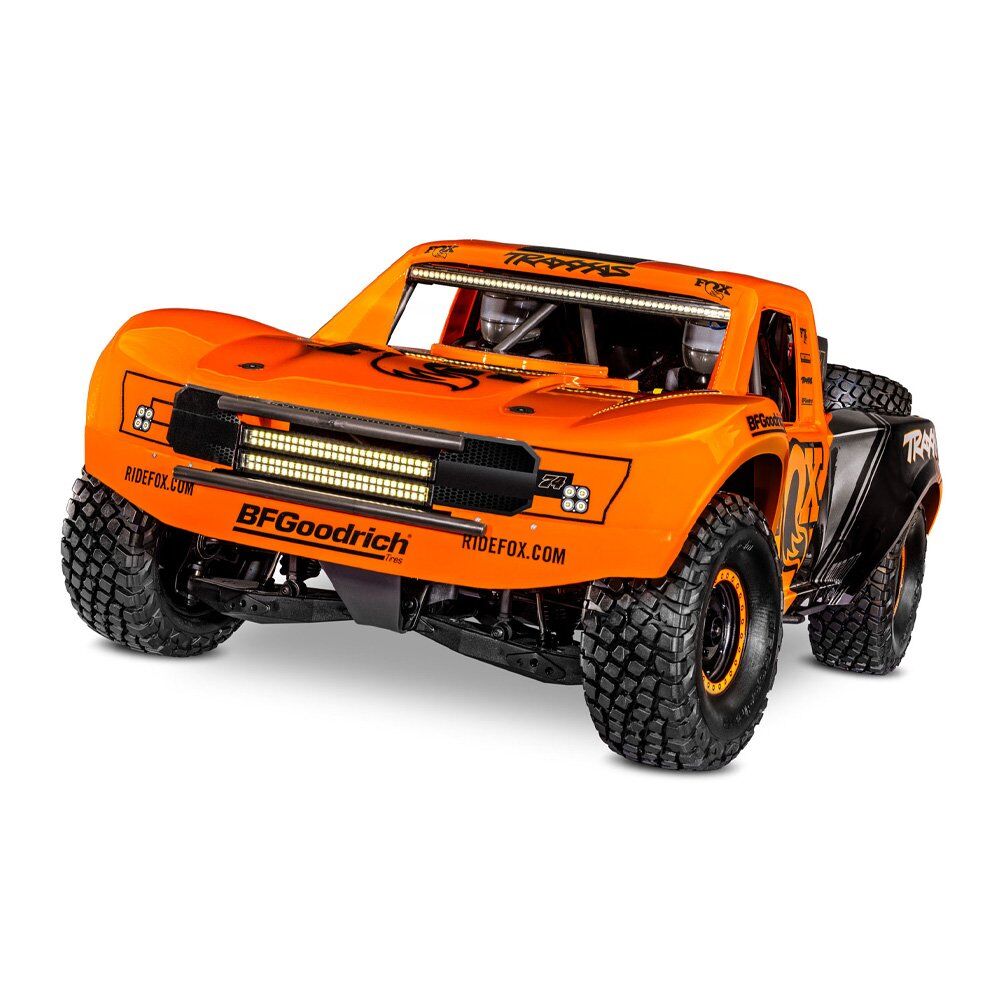

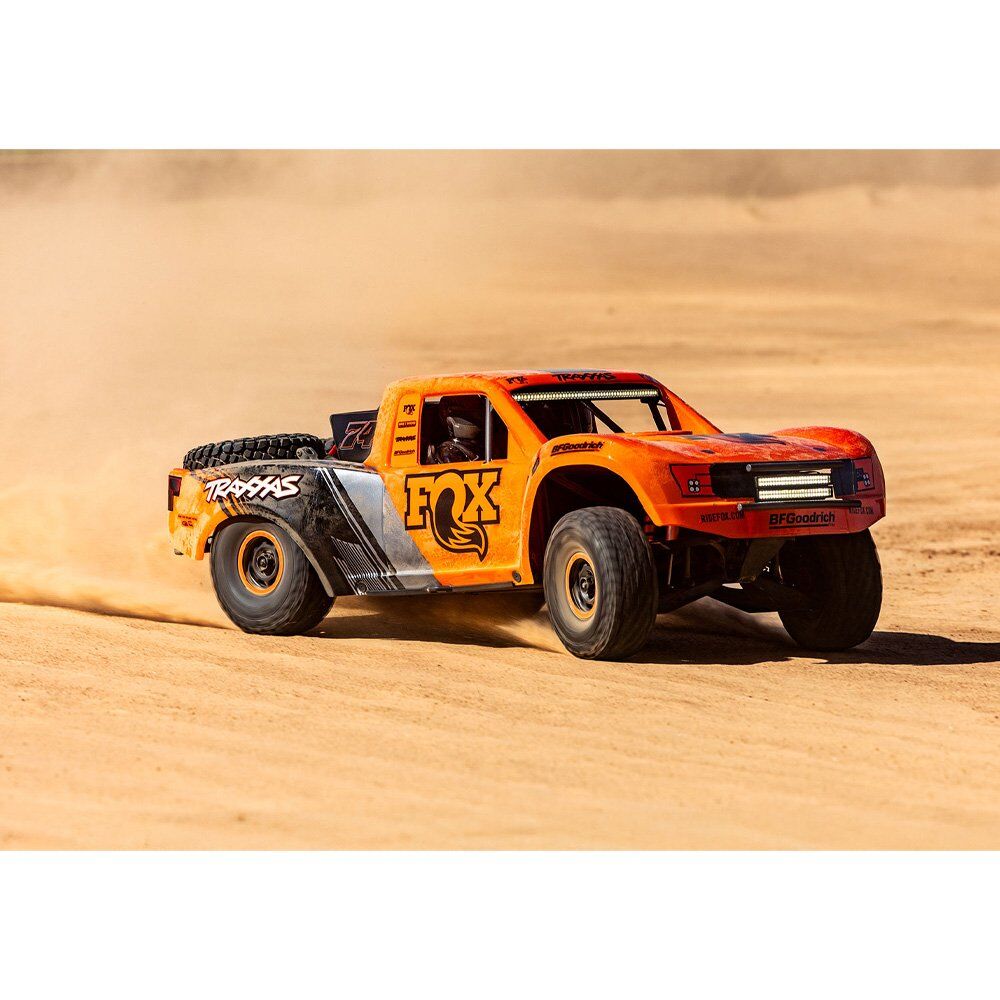

Traxxas Unlimited Desert Racer (UDR) R/C 6S 4WD with Lights

The Unlimited Desert Racer combines Pro Scale performance with extreme 6s power for the most thrilling RC driving experience possible. The UDR drives like a real desert truck because its engineered like a real desert truck. A 4-link solid rear axle provides huge suspension travel with authentic driving dynamics. From the cantilever sway bars and high-voltage lighting system to the GTR shocks, Traxxas accurately reproduced a true desert racer in both form and function.

Whats In The Box:

Unlimited Desert Racer with VXL-6s ESC and 2200 kV motor
Factory-installed front and rear LED lighting
VXL-6s Waterproof Electronic Speed Control
TQi 2.4 GHz radio system
Large Pro Scale® Body with Highly Detailed Replica Parts
Quick Start Guide
Quality tool set

What Youll Need:

Batteries:
Single 4s LiPo battery or dual 2s LiPo batteries or dual 3s LiPo batteries, with Traxxas High-Current connector
Charger:
Traxxas EZ-Peak® Live charger
AA Alkaline Batteries:
Four AA alkaline batteries for the transmitter

Large Pro Scale^{^®} Body with Highly Detailed Replica Parts
- Heavy-duty truck body mounts to chassis in multiple locations
- Strong and functional tube frame mimics full-size off-road racers
- Detailed interior cabin with driver figures
- Replica brake calipers and discs with integrated 17 mm wheel hubs
- Two fully functional spare tires and functional spare driveshaft
- Highly detailed replica parts: fire extinguishers, shock reservoirs, jack, and tools
- Realistic side plates mount to tube frame
VXL-6s™ Waterproof Electronic Speed Control
- 6S LiPo compatible
- Integrated cooling fan
- Real-time telemetry via Traxxas Link™
- Machined heat sink
- 3-LED status indicators
- Powered accessory ports
- 10-gauge silicone wire
Velineon^{^®} Brushless Motor
- 4-pole 2200 Kv brushless motor
- 5 mm output shaft
- Finned can for better heat dissipation
Traxxas Stability Management^{^®} (TSM)
- Improves straight line acceleration and braking on low-traction surfaces
- Maintains steering composure to allow throttle-on powerslides
- Never dulls throttle or slows the truck
- Adjusts from off to 100% assistance from the transmitter
Factory Installed LED light kit
- Dual bumper-mounted light bars (52 LEDs each)
- Curved roof light bar (52 LEDs)
- Multifunction red and amber brake light/class light bar (24 red and 24 amber LEDs)
- High-voltage 8-channel power amplifier
- Regulated output for stable lighting performance

TQi™ 2.4 GHz Radio System
- 2-channel transmitter
- 5-channel micro receiver (6533) with fail-safe and integrated telemetry ports
- Compatible with Traxxas Link Wireless Module (6511, sold separately) to access full Traxxas Link app functionality
- Automatically stores and loads settings for up to 30 Traxxas Link enabled models
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle endpoints
- Patented waterproof receiver box with easy-access plug
Chassis
- Composite inverted tub design
  - Makes maintenance easier
  - Lowers center of gravity (CG) for improved handling
  - Allows easy access to components
- Tough skid plates protect critical components
- Fully integrated tube frame for scale appearance and added rigidity
- Reinforced bumpers to absorb impacts
- ESC battery plugs hard mounted to chassis
Innovative Battery Compartment
- Accommodates single 4-cell LiPo or dual 2-cell or 3-cell LiPo batteries
- Opens from underneath without removing body
- Fixed oversize battery strap locks batteries securely into place
- Separate skid plate to protect batteries
Transmission
- All-steel gear direct drive transmission
- Torque-Biasing Center Drive™
- Removes as a single piece for easy maintenance
- Fixed-pin gear mesh system

Drivetrain
- Steel CV driveshafts (front) with 6 mm stub axles
- Steel straight axle (rear)
- Oil-filled limited slip front differential
- Locked steel spool (rear)
- Heavy-duty splined front driveshaft
- Fixed-length steel rear driveshaft
Steering
- Chassis mounted 2270 metal-gear servo
- Dual-bellcrank design with bearings and integrated servo saver
- Solid non-adjustable steering links for rugged durability
Suspension
- Provides scale looks and authentic off-road driving dynamics
- Tough independent double-wishbone front suspension with captured rod ends
- Triangulated 4-link rear suspension with solid rear axle
- Tough composite trailing arms
- Steel upper links with 3 optional positions for suspension tuning
- Eight long-travel aluminum GTR shocks; four with springs and adjustable ride height collars
- Realistic and functional front and rear sway bars
- Detailed functional limit straps on rear axle
Wheels and Tires
- Replica BFGoodrich^{^®} KR3 off-road tires
- Beadlock-style 17 mm dual-diameter wheels
Sealed Ball Bearings
Hex Hardware with Rust-Resistant Black Oxide Coating
